Sn60 Pb40 Lead Based Tin Rosin Core Solder

Sn60 Pb40 Lead Based Tin Rosin Core Solder

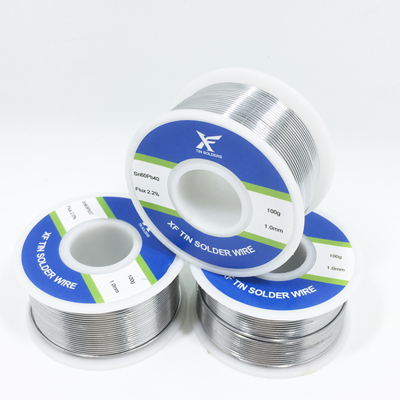

Sn60 Pb40 lead based tin rosin core solder is a type of solder that is widely used in a range of applications, including electronics assembly, plumbing joinery, and jewelry making. Solder is performing to bond two metal components together, like IC onto PCB boards, copper pipes to fittings etc. This solder is made up of a mixture of 60% tin and 40% lead, and it is known for its good electrical conductivity, strength, and ease of use. It’s lead basd solder, such snpb solder is more affordable comparing to lead fee solder, and easier to melt, that’s why it’s widely used.

	Type: Lead based solder (snpb type)
	Alloy: Sn60 (tin 60%) / Pb40 (lead 40%)
	Core: tin lead rosin core solder 2.2% by weight
	Wire Diameters: 0.5mm solder, 0.7mm solder, 0.8mm solder, 1mm solder
	Size of pack: 100g solder, 250g solder, 1lb solder, 500g solder
	Melting point: 183 to 190 ℃
	Tools: soldering irons, soldering stations



Key benefits of Sn60 Pb40 lead based tin rosin core solder:

One of the main features of Sn60 Pb40 lead based tin rosin core solder is its versatility. It is available in a range of sizes, including 0.5 mm, 0.7 mm, 0.8 mm, 1 mm, and other sizes, making it suitable for use in a wide range of applications. It is also available in a range of package sizes, including 100g, 250g, 500g, and 1lb, making it convenient for use in both large and small projects.

Sn60 Pb40 lead based tin rosin core solder is also known for its good melting point, which is around 183-190°C (361-374°F). This makes it easy to work with, as it melts quickly and smoothly, and it can be used with a variety of soldering tools, such as soldering irons, soldering guns, and soldering stations.

The rosin core in Sn60 Pb40 lead based tin rosin core solder serves several purposes. First, it helps to improve the flow of the solder, making it easier to work with and ensuring that it adheres well to the surfaces being soldered. The rosin also acts as a flux, helping to remove any oxide layers or contaminants that may be present on the surfaces being soldered, which can improve the strength and reliability of the soldered joint.

Using instructions of Sn60 Pb40 lead based tin rosin core solder:

To use Sn60 Pb40 lead based tin rosin core solder, it is important to first clean the surfaces being soldered to ensure that they are free of any contaminants or oxide layers. In most general cases, the rosin core inside Sn60 solder is strong enough to clean the soldering area, but in case it’s for repairing project, we still recommend to well clean the soldering area before hand. This can be done using a cleaning agent or by sanding or scraping the surfaces. Next, the soldering iron or other soldering tool should be heated to the appropriate temperature, and the solder should be applied to the joint. The heat from the soldering tool will cause the solder to melt and flow into the joint, forming a strong and reliable connection. For sn 60 pb 40 solder, we recommend to use a working temperature around 250℃ to 300℃. Also it’s important to choose the proper wire diameter, like 0.5mm solder, 0.7mm solder, 0.8mm solder or 1mm solder, so that the solder will melt the proper amount to create the right size of solder bead.

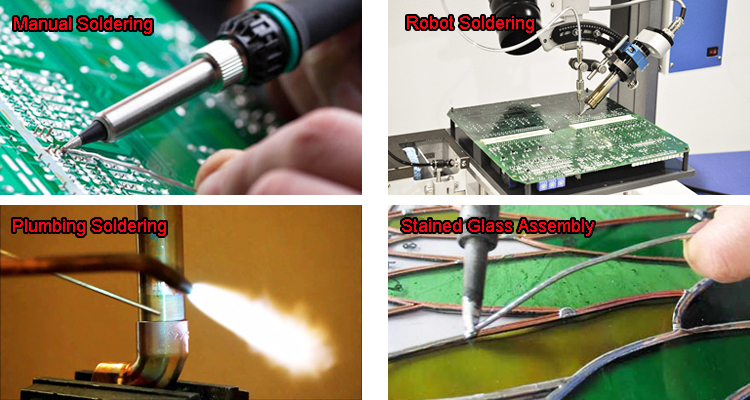

Applications of Sn60 Pb40 lead based tin rosin core solder:

Sn60 Pb40 lead based tin rosin core solder is used in a wide range of applications, including electronics, plumbing, and jewelry making. In electronics, it is commonly used to create connections between components, such as circuit boards, wires, and connectors. In plumbing, it is used to join pipes and fittings together, creating a watertight and leak-proof connection. In jewelry making, it is used to create connections between metal components, such as beads, chains, and clasps.



Overall, Sn60 Pb40 lead based tin rosin core solder is a versatile and reliable material that is widely used in a range of applications. It is known for its good electrical conductivity, strength, and ease of use, and it is available in a range of sizes and package sizes to suit different needs. Whether you are working on a large or small project, Sn60 Pb40 lead based tin rosin core solder is an essential material to have on hand.

If you are looking for a supplier of Sn60 Pb40 solder, please contact our sales team, Email: xfsolder@gmail.com or xfsolder@163.com ; Whatsapp / Wechat: 0086 13450770997
