Tin Lead Rosin Activated Solder Core Wire for sale

Tin Lead Rosin Activated Solder Core Wire

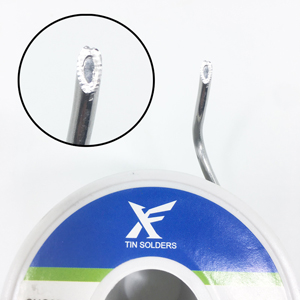

Tin lead rosin activated solder core wire is a type of wire that is used in soldering applications to create a strong and reliable bond between two metal surfaces, the electronic components and the PCB. This type of wire is made from a mixture of tin and lead at different composition, and the core of the wire is injected with activated rosin flux, which helps to activate the solder and create a strong bond when heated.



There are also several different wire diameters and weight options available for tin lead rosin activated solder core wire. Some common wire diameters include 0.5 mm, 0.6 mm, 0.8 mm, 1 mm, and 2 mm, while common weights for a roll of solder wire include 250g, 500g, and 1kg. The wire diameter and weight of the solder wire should be chosen based on the specific soldering application and the needs of the user.

Name	Wire Diameter	Weight per roll	Quantity in stock
rosin core solder wire	solder wire 0.5mm	500g solder wire	500kgs
rosin activated core wire	0.6mm solder wire	500g solder wire	500kgs
tin lead rosin core solder wire	0.8mm solder wire	500g solder wire	500kgs
rosin core solder wire	1mm solder wire	1kg solder wire	500kgs
rosin activated core wire	1mm solder wire	1kg solder wire	500kgs
tin lead rosin core solder wire	2mm solder wire	1kg solder wire	500kgs



Benefits of Tin Lead Rosin Activated Solder Core Wire:

Rosin core solder wire is pre-fluxed with activated rosin which helps to activate the solder, making it easier to create a strong and reliable bond. The tin lead solder wire without using flux can’t work properly. If we use a solid solder wire without rosin flux core, then we have to apply a compatible flux in separate which is quite troublesome and not handy. With solder core wire that is pre-fluxed, the rosin in the core of the wire acts as a flux, which helps to remove any oxide layers or other contaminants from the surface of the metal being soldered. This helps to ensure that the solder is able to form a strong and reliable bond at the solder joints. Such a tin lead rosin core solder wire is handy for both small projects like DIY soldering or big projects for soldering is electronics factory.



What alloys are available in Tin Lead Rosin Activated Solder Core Wire?

There are several different alloys of tin lead solder wire available on the market, each of which has its own unique properties and characteristics. Some of the most common alloys include:

63/37 solder core wire: This alloy is made from a mixture of 63% tin and 37% lead, and is a popular choice for use in soldering applications that require a strong and reliable bond. It is an eutectic alloy that has a relatively low melting point at 183℃ and is easy to work with, making it a convenient choice for many users.

60/40 rosin core solder wire: This alloy is made from a mixture of 60% tin and 40% lead, and is also a popular choice. It has a slightly higher melting point than 63/37 tin lead solder wire at 190℃, but is still relatively easy to work with. And it’s also slightly cheaper than 63/37 solder wire.

30/70 rosin activated core wire: This alloy is made from a mixture of 30% tin and 70% lead. It has higher percentage of lead, which makes its cost is relatively low comparing to the above two alloys, although it has a higher melting point. It’s suitable for some general soldering work like repairs, or mass production for radiator soldering.



Overall, tin lead rosin activated solder core wire is a convenient and reliable choice for use in a wide range of soldering applications. Its strong bonding properties and easy-to-use rosin activated core make it a popular choice for many users, while its versatility and availability in different wire diameters and weights make it suitable for a wide range of soldering needs. Whether you are working on a small electronics repair project or a larger manufacturing project, tin lead rosin activated solder core wire is a reliable choice that can help you achieve strong and reliable soldering results.

If you need this solder wire with different wire diameters, please contact our sales team. Email: xfsolder@gmail.com or xfsolder@163.com ; Whatsapp/Wechat: 008613450770997
