Lead-Free Soldering Wire with Flux Core 1kg 500gm 250g
Lead-Free Soldering Wire with Flux Core 1kg 500gm 250g: A Comprehensive Guide
Soldering is a crucial process in the electronics industry, and the choice of soldering wire can significantly impact the quality of the final product. In recent years, there has been a growing concern about the use of lead in soldering wire due to its adverse effects on health and the environment. As a result, lead-free soldering wire has become increasingly popular. In this article, we will discuss lead-free soldering wire with flux core 1kg 500gm, its specifications, applications, features, and advice for using it.
What is Lead-Free Soldering Wire with Flux Core?

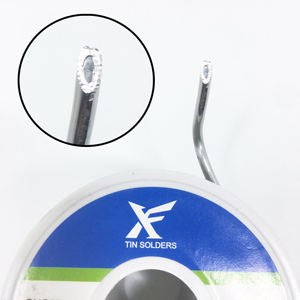

Lead-free soldering wire with flux core is a type of soldering wire that does not contain lead. Instead, it is made up of a combination of tin, silver, and copper. The flux core is a type of flux that is used to clean the surface of the metal being soldered, allowing the solder to flow smoothly and bond effectively.
Specifications Lead-Free Soldering Wire with Flux Core:
The lead-free soldering wire with flux core has the following specifications:
- Alloys: Sn96.5Ag3Cu0.5 (SAC305), Sn99Ag0.3Cu0.7 (SAC0307), Sn99.3Cu0.7 (SAC07), Sn42Bi58
- Diameter: 0.8mm, 1.0mm, 1.2mm, 2mm, 3mm etc or customized as required.
- Melting point: 217-225°C
- Flux content: 2.0%

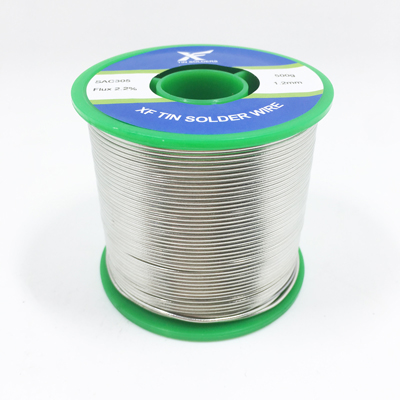

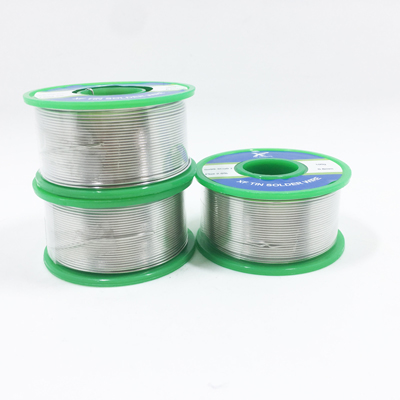

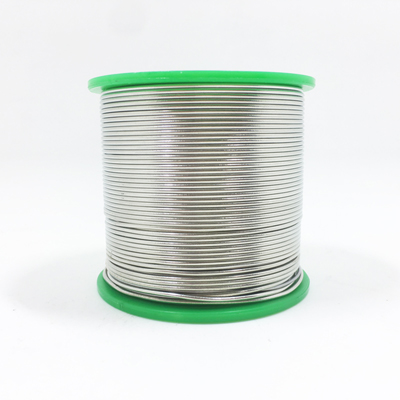

- Weight: soldering wire 1kg, soldering wire 250g, soldering wire 500gm

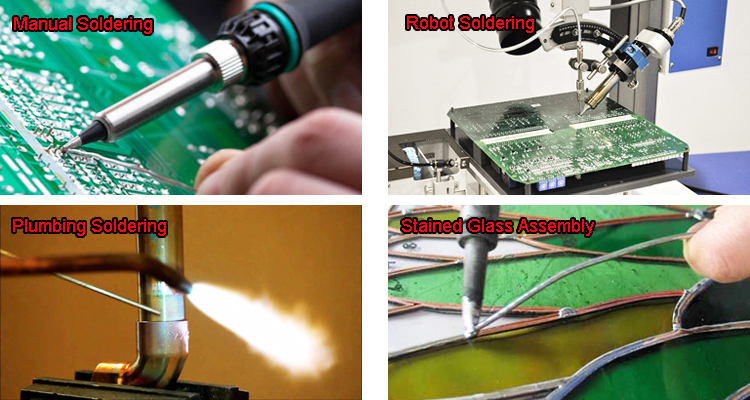

Applications of Lead-Free Soldering Wire with Flux Core 1kg 250g 500gm:
Lead-free soldering wire with flux core 1kg 250g 500gm is suitable for a wide range of applications, including
- Electronics: It is commonly used in the assembly and repair of electronic devices such as circuit boards, computers, and mobile phones.
- Plumbing: It is used to join copper pipes in plumbing applications.
- Automotive: It is used in the repair and maintenance of automotive electrical systems.
Choose the proper weight of soldering wire among 1kg, 500gm & 250g, so that you don't need to waste the material
Why do we use Lead-Free Soldering Wire with Flux Core 1kg 250g 500gm?
The use of lead in soldering wire has been linked to various health and environmental issues. Lead exposure can cause serious health problems such as anemia, high blood pressure, and damage to the nervous system. Moreover, lead is a toxic substance that can contaminate soil and water, leading to environmental pollution. Therefore, the use of lead-free soldering wire is essential for the health and safety of workers and the environment. And it can be used for electronics devices that need RoHS compliant.
Features of Lead-Free Soldering Wire with Flux Core 1kg 250g 500gm:
The lead-free soldering wire with flux core 1kg 250g 500gm has several features that make it an excellent choice for soldering applications. These include:
- Good wetting ability: The flux core in the soldering wire allows it to flow smoothly and bond effectively with the metal being soldered.
- Low spatter: The lead-free soldering wire produces minimal spatter, which helps to prevent damage to the components being soldered.
- High reliability: The soldering wire has excellent electrical conductivity and thermal stability, making it highly reliable.
- Many weight options: the soldering wire are available in 1kg, 250g, 500gm each reel, also can be like 100g, 400g, 600g, 800g etc.
Advice for Using Lead-Free Soldering Wire with Flux Core 1kg 250g 500gm
To achieve the best results when using lead-free soldering wire with flux core 1kg 500gm, here are some tips to keep in mind:
- Use the right temperature: The melting point of the soldering wire is 217-220°C. Ensure that the temperature of the soldering iron is set correctly to avoid overheating or underheating the wire.
- Clean the surface: The flux core in the soldering wire is designed to clean the surface of the metal being soldered. However, it is essential to ensure that the surface is free of dirt, grease, and other contaminants before soldering.
- Use the right amount of solder: Using too much or too little solder can affect the quality of the joint. Use just enough solder to create a strong bond between the two surfaces being soldered.
Conclusion
Lead-free soldering wire with flux core 1kg 500gm is an excellent choice for soldering applications, especially in the electronics industry. It is a safer and more environmentally friendly alternative to lead-based soldering wire. By following the tips outlined in this article, you can achieve high-quality soldering results with this wire.
If you need to buy Lead-Free Soldering Wire with Flux Core 1kg 500gm 250g from China, please contact our sales team, Email: xfsolder@gmail.com or xfsolder@163.com ; Whatsapp/Wechat: 008613450770997
